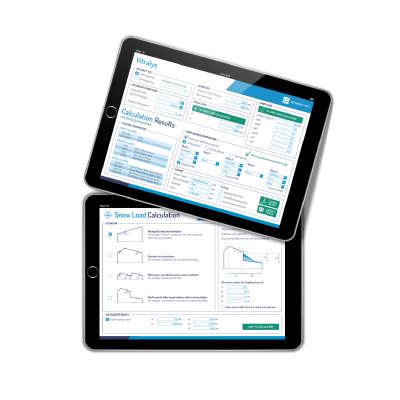

Vitralys Application
Our Vitralys app. is your essential tool to defining the thickness of your glass products in full alignment with the latest Belgian and European norms.
Standard NBN
Standard NBN S23-002-2:2020 ‘Glass – Part 2: Calculation of glass thicknesses’ was developed by the competent Belgian Standardisation Commission NBN E 129 “Glass in construction”, acting as the national mirror committee of the European Technical Committee CEN TC 129 “Glass in building” and the International Technical Committee ISO TC 160 “Glass in building”.
This Belgian committee is active within the Glass Industry Federation, which, pursuant to the Royal Decree of 21 October 2004, has been recognised as the sectoral standardisation operator for the work of this committee.
www.nbn.be
The standards NBN S23-002-2:2020 and NBN S23-002-3:2020 are available from the NBN (Standardisation Office):
The compliance of the Vitralys® application with standard NBN S23-002-2:2020 has been verified by the Glass Industry Federation, which accepts no responsibility for its use. The general terms and conditions of sale and use are available here.
Vitralys®: version 2.01
- Regulatory framework:
- NBN S23-002-2:2020
- Vertical & sloped glazing
- Interior walls in accordance with best practices
- Rectangular glazing on 2, 3 & 4 supports
- Traditional installation & bonded exterior glazing
- Wind load calculation
Snow load calculation - Predefined & specific compositions
- Calculation of a series of glazing
- Single, double & triple glazing
- Laminated & monolithic glass
- Annealed float, annealed printed glass, sandblasted annealed float, toughened float, toughened enamelled float, toughened float, toughened enamelled float
- Choice of spacer
- Detailed calculation & calculation report
